14 Inch Turbine Worm Gear W14 Open Slew Drive Single Axis Hydraulic Motor Slewing Drive for Most Favorable Price

$650.00

SAVE Sold out

🔄 14 Inch Turbine Worm Gear W14 Open Slew Drive - Single Axis Hydraulic Motor Slewing Drive for Most Favorable Price

Professional 14-inch turbine worm gear W14 open slew drive with single axis hydraulic motor integration, offered at the most favorable price without compromising quality. Our advanced turbine worm gear technology delivers superior rotational performance with ultra-precise control for heavy-duty rotating machinery requiring maximum torque capacity and cost-effective solutions.

✨ Key Features

14-Inch Ultra Heavy-Duty Design: Large capacity for the most demanding applications
Turbine Worm Gear Technology: Advanced turbine design for maximum efficiency
W14 Open Type Design: Easy maintenance and installation access
Single Axis Configuration: Simplified control and ultra-precise operation
Hydraulic Motor Integration: Seamless hydraulic motor compatibility
Most Favorable Price: Exceptional value without quality compromise
Premium Materials: 42CrMo, 50Mn steel construction
ISO Certified Quality: ISO9001 & ISO4001 certified manufacturing
1-Year Warranty: Comprehensive guarantee coverage

📏 Technical Performance Specifications

Performance Parameter	Specification
Model	W14 Open Slew Drive
Size	14 Inch Diameter
Output Speed	0.25 rpm (Ultra-Precise Control)
Rated Output Torque	10.8 KN.m
Overturning Moment	71 KN.m
Holding Torque	48 KN.m
Axial Load	960 KN
Radial Load	360 KN
Gear Ratio	85:1
Material	42CrMo, 50Mn, Customizable

⚙️ Advanced Turbine Worm Gear Technology

The W14 features state-of-the-art turbine worm gear technology with 85:1 gear ratio, providing ultra-precise control with 0.25 rpm output speed. The turbine design maximizes torque multiplication while ensuring exceptional efficiency and minimal operational noise for precision applications.

🏗️ Ultra Heavy-Duty Precision Applications

Specifically engineered for ultra heavy-duty precision machinery including large industrial cranes, precision positioning systems, heavy material handlers, and specialized rotating platforms requiring ultra-precise control and maximum load capacity.

🛡️ Quality Assurance & Certification

Each W14 open slew drive undergoes comprehensive testing including:

ISO9001 & ISO4001 quality management certification
Ultra-precise speed control verification
Maximum load capacity testing
Turbine worm gear efficiency validation
Hydraulic motor compatibility testing
Precision application durability testing

🔧 Installation & Maintenance Advantages

Open type design for easy access
Single axis ultra-precise control
Turbine worm gear efficiency
Professional installation guidance
Maintenance-friendly design
Technical support available

🌍 Precision Industrial Applications

Perfect for precision industrial machinery, large cranes requiring ultra-precise positioning, heavy-duty material handlers, specialized rotating platforms, and applications demanding maximum torque with ultra-precise control.

💰 Most Favorable Price Advantages

Origin: Anhui, China - Cost-effective manufacturing
Most Favorable Pricing: Exceptional value without quality compromise
Customization: Available for specific precision requirements
Packaging: Professional plywood case protection
Certificates: ISO9001 & ISO4001 certified
Warranty: 1-year comprehensive coverage

📞 Technical Support & Custom Solutions

Contact our engineering team for custom specifications, technical consultations, and bulk order pricing. We provide comprehensive support from selection to installation and ongoing maintenance for precision applications at the most favorable price.

cheap and good quality, just shipping time varies depending on different destination countries

client anonymous
very nice

client anonymous
i love the product, much cheaper than dealers in italy

client anonymous

check_box

This Gear Is Fully Cutomizable

1- send us your gear parts graph or tell us your specific model / many customization progress are free of charge

2- online live chat with us to know more about customization of this item

View full details

PRODUCTS APPLICATION

Examination Equipment Glance

Metallographic Microscope

A Metallographic Microscope examines metal microstructures at high magnification, revealing details invisible to the naked eye.

Coordinate Measuring Machine

A Coordinate Measuring Machine precisely measures object dimensions using a probe system. Essential for quality control in manufacturing.

Direct Reading Spectrometer

A Direct Reading Spectrometer instantly analyzes material composition by measuring emitted light wavelengths. Essential for rapid quality control in metallurgy.

Hardened Layer Depth Detector

Hardened Layer Depth Detector measures hardened surface thickness on metals. Essential for quality control in heat treatment processes.

Magnetic Particle Flaw Detector

Magnetic Particle Flaw Detector reveals surface and near-surface defects in ferromagnetic materials. Essential for non-destructive testing in manufacturing and maintenance.

Production Equipment Glance

LIYUAN DRIVE is equipped with advanced manufacturing equipment and a comprehensive production line, ensuring high precision and reliability of our products. Our production facility features 1.8m CNC gear milling machine, 3m CNC drilling machine, precision CNC vertical lathe, and CNC gear grinding machine, enabling precise machining of various complex components. Additionally, our heat treatment furnace guarantees optimal hardness and durability of materials, while the 800-ton hydraulic press provides powerful support for large component forming. This advanced equipment allows us to meet customer demands for high-quality drive products while ensuring production efficiency and product consistency.

Precision Processing Technology

We excel in advanced precision processing technology, ensuring unparalleled quality and innovation in every detail.

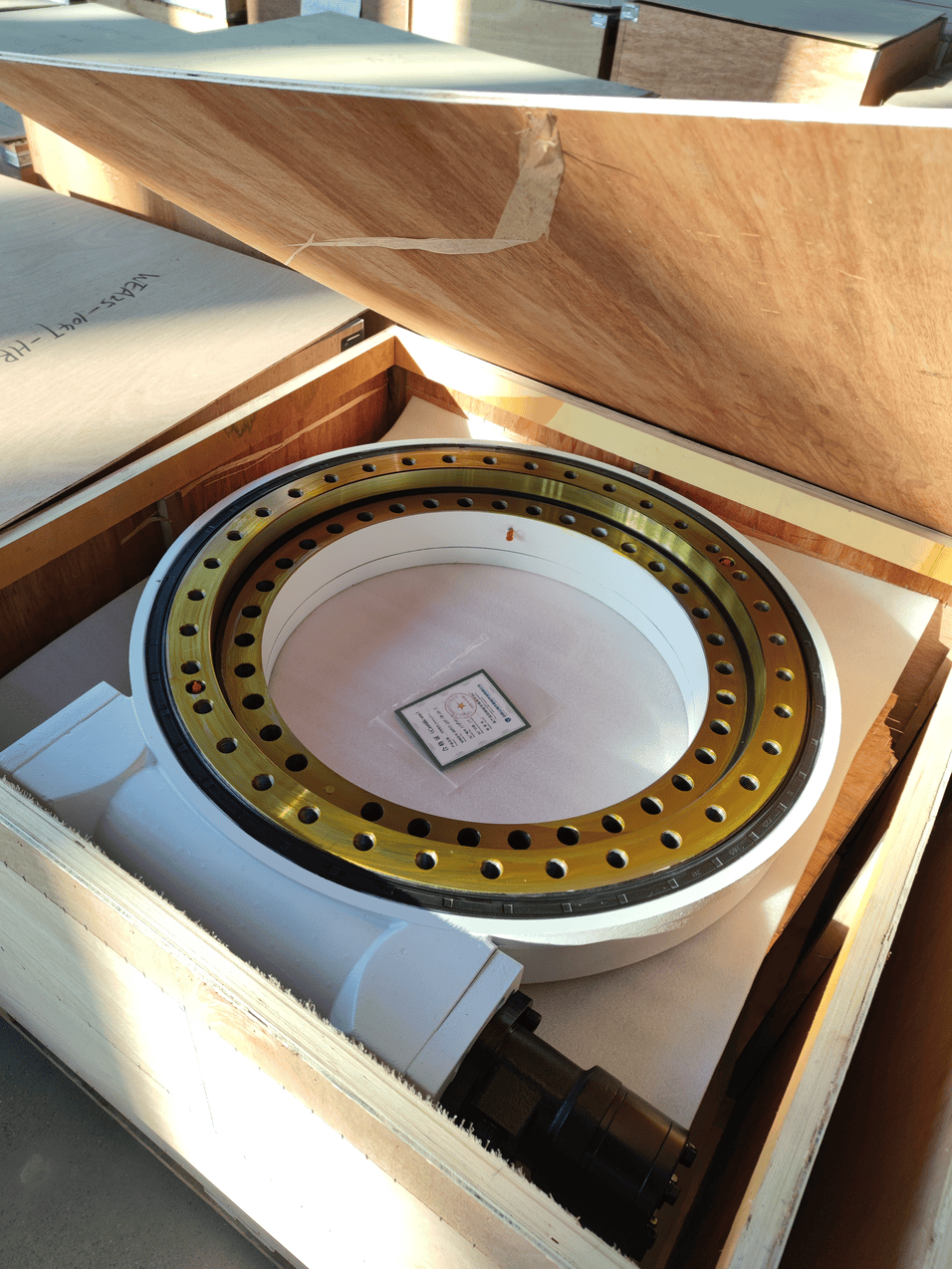

Transportation and Packaging
