17 Inch High Quality Worm Gear W17 Open Slew Drive Single Axis Hydraulic Motor Slewing Drive for Vehicle Aerial Platform

$730.00

SAVE Sold out

🔄 17 Inch High Quality Worm Gear W17 Open Slew Drive - Single Axis Hydraulic Motor Slewing Drive for Vehicle Aerial Platform

Professional 17-inch high quality worm gear W17 open slew drive with single axis hydraulic motor integration, specifically designed for vehicle aerial platforms. Our advanced worm gear technology delivers superior rotational performance with exceptional load capacity for large-scale rotating machinery requiring maximum torque and reliable operation in mobile applications.

✨ Key Features

17-Inch Large-Scale Design: Maximum capacity for vehicle aerial platforms
High Quality Worm Gear Technology: Premium worm gear for superior performance
W17 Open Type Design: Easy maintenance and installation access
Single Axis Configuration: Simplified control and reliable operation
Hydraulic Motor Integration: Seamless hydraulic motor compatibility
Vehicle Aerial Platform Specialist: Optimized for mobile aerial equipment
Premium Materials: 42CrMo, 50Mn steel construction
ISO Certified Quality: ISO9001 & ISO4001 certified manufacturing
1-Year Warranty: Comprehensive guarantee coverage

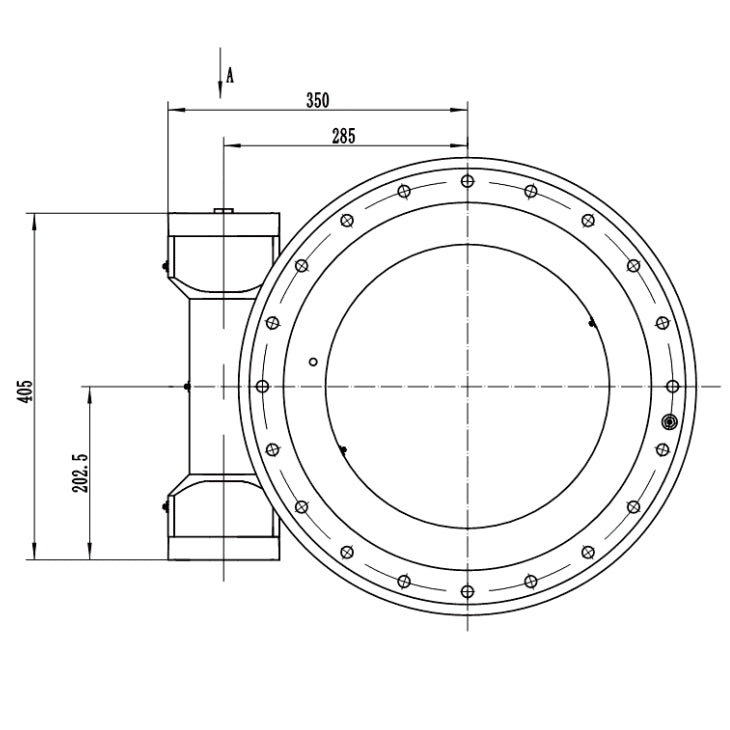

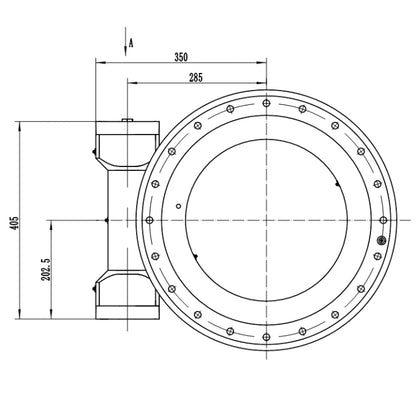

📏 Technical Performance Specifications

Performance Parameter	Specification
Model	W17 Open Slew Drive
Size	17 Inch Diameter
Output Speed	2.5 rpm
Rated Output Torque	12.9 KN.m
Overturning Moment	142 KN.m
Holding Torque	72.3 KN.m
Axial Load	1166 KN
Radial Load	435 KN
Gear Ratio	104:1
Material	42CrMo, 50Mn, Customizable

⚙️ High Quality Worm Gear Technology

The W17 features premium worm gear technology with 104:1 gear ratio, providing exceptional torque multiplication and smooth operation. The high quality worm gear design ensures reliable performance in demanding vehicle aerial platform applications with superior load handling capabilities.

🚛 Vehicle Aerial Platform Applications

Specifically engineered for vehicle-mounted aerial platforms, truck-mounted lifts, mobile cranes, utility vehicles, and specialized mobile aerial equipment. The 17-inch design provides optimal balance between power and mobility for vehicle-based applications.

🛡️ Quality Assurance & Certification

Each W17 open slew drive undergoes comprehensive testing including:

ISO9001 & ISO4001 quality management certification
Vehicle platform compatibility testing
Maximum load capacity verification
Worm gear performance validation
Hydraulic motor integration testing
Mobile application durability testing

🔧 Installation & Maintenance Advantages

Open type design for easy access
Single axis simplicity
Vehicle platform integration
Professional installation guidance
Mobile-friendly maintenance design
Technical support available

🌍 Vehicle Aerial Platform Applications

Perfect for vehicle-mounted aerial platforms, truck-mounted lifts, mobile cranes, utility service vehicles, emergency response equipment, and specialized mobile aerial work platforms requiring reliable rotational control.

🏭 Manufacturing Excellence

Origin: Anhui, China - Advanced manufacturing facility
Vehicle Platform Optimization: Designed for mobile applications
Customization: Available for specific vehicle requirements
Packaging: Professional plywood case protection
Certificates: ISO9001 & ISO4001 certified
Warranty: 1-year comprehensive coverage

📞 Technical Support & Custom Solutions

Contact our engineering team for custom specifications, technical consultations, and bulk order pricing. We provide comprehensive support from selection to installation and ongoing maintenance for vehicle aerial platform applications.
