9 Inch High Quality Helical Worm Gear W9 Open Slew Drive Single Axis Hydraulic Motor Slewing Drive

Name: 9 Inch High Quality Helical Worm Gear W9 Open Slew Drive Single Axis Hydraulic Motor Slewing Drive
Brand: LIYUAN DRIVE
SKU: W9-WORM-OPEN-SD
Price: 500.0 USD
Availability: InStock

(100+ Reviews)

$500.00 USD

SAVE Sold out

Product variants

Quantity

add_shopping_cart

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

9 Inch High Quality Helical Worm Gear W9 Open Slew Drive Single Axis Hydraulic Motor Slewing Drive

$500.00

SAVE Sold out

🔄 9 Inch High Quality Helical Worm Gear W9 Open Slew Drive - Single Axis Hydraulic Motor Slewing Drive

Professional 9-inch high quality helical worm gear W9 open slew drive with single axis hydraulic motor integration, designed for construction machinery and industrial applications. Our advanced helical worm gear technology delivers superior rotational performance with enhanced efficiency for medium-duty rotating machinery requiring optimal torque and reliable operation.

✨ Key Features

9-Inch Medium-Duty Design: Optimal size for construction machinery applications
High Quality Helical Worm Gear: Advanced helical design for enhanced efficiency
W9 Open Type Design: Easy maintenance and installation access
Single Axis Configuration: Simplified control and operation
Hydraulic Motor Integration: Seamless hydraulic motor compatibility
Construction Machinery Specialist: Optimized for construction equipment
Premium Materials: 42CrMo, 50Mn steel construction
ISO Certified Quality: ISO9001 & ISO4001 certified manufacturing
1-Year Warranty: Comprehensive guarantee coverage

📏 Technical Performance Specifications

Performance Parameter	Specification

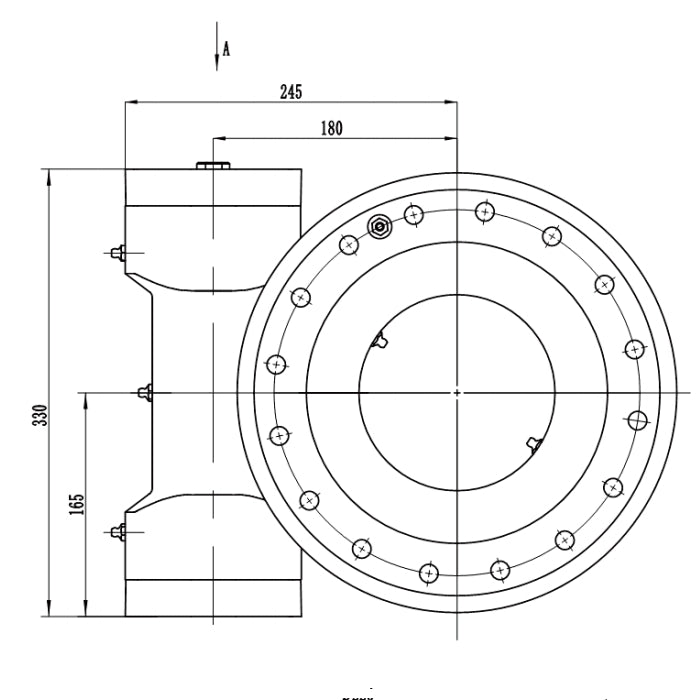

Model	W9 Open Slew Drive
Size	9 Inch Diameter
Output Speed	1.5 rpm
Rated Output Torque	8 KN.m
Overturning Moment	35.6 KN.m
Holding Torque	38.7 KN.m
Axial Load	578 KN
Radial Load	215 KN
Gear Ratio	62:1
Material	42CrMo, 50Mn, Customizable

⚙️ High Quality Helical Worm Gear Technology

The W9 features premium helical worm gear technology with 62:1 gear ratio, providing enhanced efficiency and smooth operation. The helical design reduces noise and vibration while delivering superior torque multiplication for demanding construction machinery applications.

🏗️ Construction Machinery Applications

Specifically engineered for construction machinery including excavators, cranes, concrete mixers, and material handling equipment. The 9-inch design provides optimal balance between power and compactness for medium-duty construction applications.

🛡️ Quality Assurance & Certification

Each W9 open slew drive undergoes comprehensive testing including:

ISO9001 & ISO4001 quality management certification
Helical worm gear efficiency testing
Load capacity verification
Torque performance validation
Hydraulic motor compatibility testing
Construction machinery application testing

🔧 Installation & Maintenance Advantages

Open type design for easy access
Single axis simplicity
Helical worm gear efficiency
Professional installation guidance
Maintenance-friendly design
Technical support available

🌍 Construction Machinery Applications

Perfect for construction machinery, excavators, cranes, concrete mixers, material handlers, and specialized construction equipment requiring medium-duty rotational control with enhanced efficiency and reliability.

🏭 Manufacturing Excellence

Origin: Anhui, China - Advanced manufacturing facility
Customization: Available for specific requirements
Packaging: Professional plywood case protection
Certificates: ISO9001 & ISO4001 certified
Warranty: 1-year comprehensive coverage

📞 Technical Support & Custom Solutions

Contact our engineering team for custom specifications, technical consultations, and bulk order pricing. We provide comprehensive support from selection to installation and ongoing maintenance for construction machinery applications.

cheap and good quality, just shipping time varies depending on different destination countries

client anonymous
very nice

client anonymous
i love the product, much cheaper than dealers in italy

client anonymous

check_box

This Gear Is Fully Cutomizable

1- send us your gear parts graph or tell us your specific model / many customization progress are free of charge

2- online live chat with us to know more about customization of this item

View full details
