Factory Customized 25 Inch High Quality Heavy Load Worm Gear W25 Open Slew Drive Single Axis Slewing Drive

$1,000.00

SAVE Sold out

🔄 Factory Customized 25 Inch High Quality Heavy Load Worm Gear W25 Open Slew Drive - Single Axis Slewing Drive

Professional factory customized 25-inch high quality heavy load worm gear W25 open slew drive with single axis configuration, engineered for maximum industrial performance. Our advanced heavy load worm gear technology delivers superior rotational performance with exceptional torque capacity for ultra heavy-duty rotating machinery requiring maximum power and factory customization capabilities.

✨ Key Features

25-Inch Ultra Heavy-Duty Design: Maximum capacity for the most demanding industrial applications
High Quality Heavy Load Worm Gear: Premium heavy load design for superior performance
Factory Customized Solutions: Tailored to specific industrial requirements
W25 Open Type Design: Easy maintenance and installation access
Single Axis Configuration: Simplified control and ultra-reliable operation
Ultra Heavy Load Capacity: Engineered for maximum load handling
Premium Materials: 42CrMo, 50Mn steel construction
ISO Certified Quality: ISO9001 & ISO4001 certified manufacturing
1-Year Warranty: Comprehensive guarantee coverage

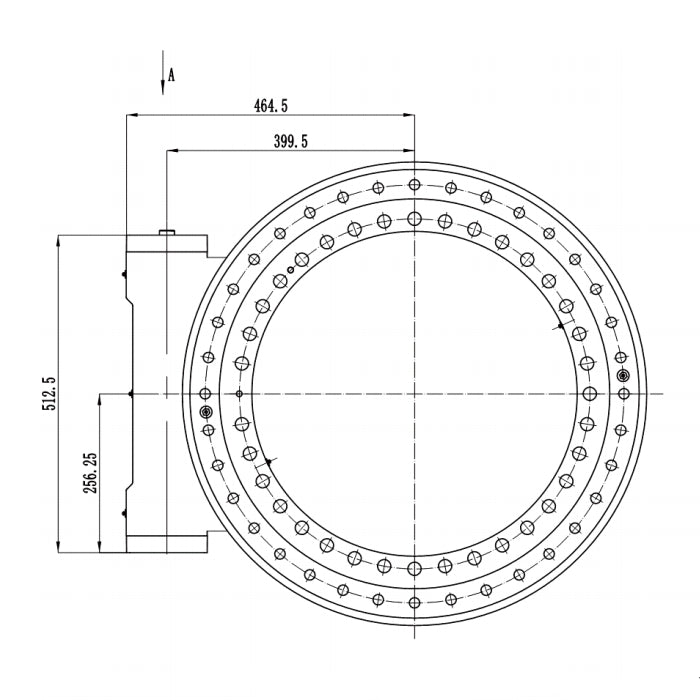

📏 Technical Performance Specifications

Performance Parameter	Specification
Model	W25 Open Slew Drive
Size	25 Inch Diameter
Output Speed	1.3 rpm
Rated Output Torque	34 KN.m
Overturning Moment	310 KN.m
Holding Torque	158 KN.m
Axial Load	2360 KN
Radial Load	945 KN
Gear Ratio	104:1
Material	42CrMo, 50Mn, Customizable

⚙️ High Quality Heavy Load Worm Gear Technology

The W25 features premium heavy load worm gear technology with 104:1 gear ratio, providing exceptional torque capacity of 34 KN.m and ultra heavy load handling capabilities. The heavy load design ensures reliable performance in the most demanding industrial applications with maximum efficiency and durability.

🏗️ Ultra Heavy-Duty Industrial Applications

Specifically engineered for ultra heavy-duty industrial machinery including large-scale mining equipment, port cranes, steel mill machinery, heavy material handlers, and specialized industrial rotating platforms requiring maximum load capacity and factory customization.

🛡️ Quality Assurance & Certification

Each W25 open slew drive undergoes comprehensive testing including:

ISO9001 & ISO4001 quality management certification
Ultra heavy load capacity verification
Maximum torque performance testing
Heavy load worm gear efficiency validation
Factory customization quality control
Ultra heavy-duty application durability testing

🔧 Installation & Maintenance Advantages

Open type design for easy access
Single axis simplicity
Heavy load worm gear efficiency
Factory customized installation guidance
Ultra heavy-duty maintenance design
Factory direct technical support

🌍 Ultra Heavy-Duty Applications

Perfect for ultra heavy-duty industrial machinery, large-scale mining operations, port equipment, steel mills, heavy material handling systems, and specialized industrial rotating platforms requiring maximum load capacity with factory customization.

🏭 Factory Customization Advantages

Origin: Anhui, China - Advanced manufacturing facility
Factory Customization: Tailored solutions for specific requirements
Engineering Support: Direct access to design engineers
Quality Control: Factory-direct quality assurance
Heavy Load Specialization: Expertise in ultra heavy-duty applications
Packaging: Professional plywood case protection
Certificates: ISO9001 & ISO4001 certified
Warranty: 1-year comprehensive coverage

📞 Factory Direct Support & Custom Solutions

Contact our engineering team directly for factory customization, technical consultations, and bulk order pricing. We provide comprehensive support from custom design to installation and ongoing maintenance for ultra heavy-duty applications with factory customization capabilities.

cheap and good quality, just shipping time varies depending on different destination countries

client anonymous
very nice

client anonymous
i love the product, much cheaper than dealers in italy

client anonymous

check_box

This Gear Is Fully Cutomizable

1- send us your gear parts graph or tell us your specific model / many customization progress are free of charge

2- online live chat with us to know more about customization of this item
